👀 Jolt Game Physics Introspection with flecs & Dear ImGui #

In this post we extend on recent posts, using Jolt with flecs & Dear ImGui to add a kind of dev tools debugging panel to a raylib game. In previous posts, we added Jolt physics to the raylib game, and also looked at adding Dear ImGui to raylib in the previous iteration of the dev tools panel.

Here, we take things a step further. For debugging game physics, I wanted to be able to pause the simulation and also step through it. I also wanted to be able to inspect game entity physical properties in real-time. I added an ECS using flecs. flecs does have its own explorer, though I preferred trying to keep everything in the same window, using ImGui. As a result, you can see the live values for physical properties, tied to the game state as you pause and step through.

Here, I just run through some decisions made in putting the demo together. If that sounds interesting to you, then let’s press on!

🧱 What I Built #

I wanted something I could use in games I am working on in raylib, and went for a two-view approach. The main view shows the game or simulation as the end-user would see it. The second view, opened by pressing the F9 key, is for developers, much like dev tools in a web browser. This developer view scales the main app down onto a texture to make way for the dev tools or debugging panel.

blurry low resolution placeholder image — Screenshot: Using Jolt with flecs: Main View

Using Jolt with flecs: screen capture shows a red sphere sitting on a large wireframe grid, in the centre of the screen. At the top, left there is a rendering frames per second readout. Below that, text reads 'Press F 9 for I m G u i debug mode'. — Screenshot: Using Jolt with flecs: Main View

The demo features a bouncing ball with physics managed by Jolt. For now the dev tools panel lets you update the ball’s mesh and get real-time readouts of its position and velocity. Finally, you can pause playback, making it easier to read data, and also step through the simulation, frame-by-frame; handy for debugging.

blurry low resolution placeholder image — Screenshot: Using Jolt with flecs: Developer View

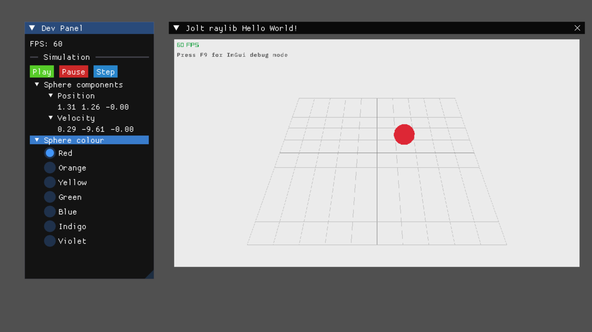

Using Jolt with flecs: screen capture shows a red sphere bouncing above a large wireframe grid, in the centre of a large panel. A smaller panel sits to the left of the main one. This smaller panel has velocity and position details for the sphere, as well as Play, Pause, and Step buttons. A list of colours with red (matching the colour of the sphere) selected sits at the bottom of the panel. At the top, left of the main panel, there is a rendering frames per second readout. Below that, text reads 'Press F 9 for I m G u i debug mode'. — Screenshot: Using Jolt with flecs: Developer View

🧩 flecs ECS #

I went for flecs as the ECS. It has a nice API and compiles to WASM (great for putting demos together). The flecs docs are also fantastic too. I used C++ in this project, though flecs also supports C and C#. Finally, there is a web-based flecs ECS monitoring app and a flecs statistics add-on (which I did not use here).

EnTT is a popular alternative to flecs for C++, which has different performance/memory characteristics.

⚡️ ImGui: Immediate Mode GUI Library #

Immediate mode GUIs are brilliant for this kind of project. They have a small drawback in that you can have less control over precise layout. The huge advantage, though, is that there is no need for callbacks and on-click handlers; the button and code executed when it is pressed are right next to each-other.

As an example, here is the code for the play button used to restart simulation after pausing:

src/systems.cpp

cpp

    1 // Play button
2 // Button styling
3 ImGui::PushID(0);
4 ImGui::PushStyleColor(
5     ImGuiCol_Button,
6     (ImVec4)ImColor::HSV(kPlayHue, kRegularSaturation, kRegularLightness));
7 ImGui::PushStyleColor(
8     ImGuiCol_ButtonHovered,
9     (ImVec4)ImColor::HSV(kPlayHue, kHoveredSaturation, kHoveredLightness));
10 ImGui::PushStyleColor(
11     ImGuiCol_Button,
12     (ImVec4)ImColor::HSV(kPlayHue, kEngagedSaturation, kEngagedLightness));
13
14 // Add the button itself
15 if (ImGui::Button("Play"))
16 {
17     // Code to execute when the button is clicked
18     spdlog::info("Play clicked");
19     if (dev_panel_state._paused)
20     {
21         dev_panel_state._paused = false;
22     }
23 }
24 ImGui::PopStyleColor(3);
25 ImGui::PopID();

We set colours for the three button states, then inline, have the logic for updating the app state. The Dear ImGui Online Manual has a ton of code examples , which are invaluable for building this kind of widget if you are new to Dear ImGui.

Nuklear is an alternative Immediate GUI , also written in C.

🏁 Next Steps #

Please enable JavaScript to watch the video 📼

Using Jolt with flecs & Dear ImGui: Game Physics Introspection Demo

So far, the code just represents a minimal viable concept. I want to add it to an existing project to get a better feel for shortcomings and what is missing. It would be interesting, also to experiment more with the flecs World Explorer, for inspiration on features and also to consider focus on features which that tool does not already offer, to avoid reinventing the wheel.

🗳 Poll #

Which immediate mode GUIs do you most use in projects?

🙌🏽 Using Jolt with flecs: Wrapping Up #

In this using Jolt with flecs post, I walked through some of the decisions I made in putting the demo together. More specifically, we saw:

why you might use flecs with Dear ImGui for Jolt physics introspection;
why I believe an immediate mode GUI like Dear ImGui is a good match for this project; and
some tips on starting out with Dear ImGui.

I hope you found this useful. As promised, you can get the full project code on the Rodney Lab GitHub repo . What suggestions do you have for taking this further? Is this something you would find useful in your game development tool belt? Do let me know how you use this code. Also reach out if there is anything I could improve to provide a better experience for you.
