Ratatui Audio with Rodio: Sound FX for Rust Text‑based UI 🔊 # Ratatui Audio with Rodio: Sound FX for Rust Text-based UI 🔊 #

🧱 Ratatui Audio with Rodio: What I Built #

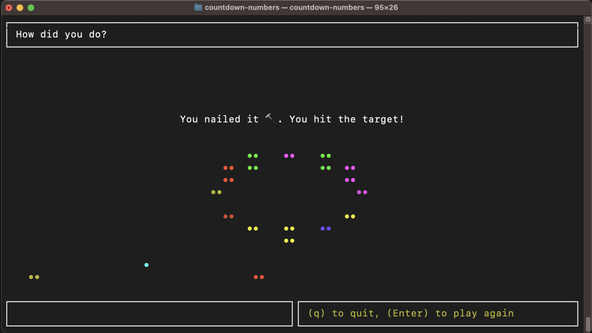

I didn’t really want background music, just sound effects to play when the player starts the challenge, and then to provide audio feedback if their latest solution attempt was good or perfect. Finally, I wanted to play some audio when each firework on the victory screen ignited. I found some quite small wave files for each of these, and converted them to MP3s.

About Rodio #

Rodio uses a number of lower level crates under the hood, simplifying adding audio via their single higher level API. These, lower-level, crates include:

• cpal for playback;
• symphonia for MP4 and AAC playback;
• hound for WAV playback;
• lewton for Vorbis playback; and
• claxon for FLAC playback.

I just needed MP3s, so disabled default features, and only added symphonia-mp3 back in the project Cargo.toml, to keep the binary size in check:


1 [package]
2 name = "countdown-numbers"
3 version = "0.1.0"
4 edition = "2021"
5 license = "BSD-3-Clause"
6 repository = "https://github.com/rodneylab/countdown-numbers"
7 # ratatui v0.26.3 requires 1.74.0 or newer
8 rust-version = "1.74"
9 description = "Trying Ratatui TUI 🧑🏽‍🍳 building a text-based UI number game in the Terminal 🖥️ in Rust with Ratatui immediate mode rendering."
10
11 [dependencies]
12 num_parser = "1.0.2"
13 rand = "0.8.5"
14 ratatui = "0.28.0"
15 rodio = { version = "0.19.0", default-features = false, features = ["symphonia-mp3"] }



🐎 Adding Rodio #

The Rodio docs  give a couple of examples for getting going. Those examples read and decode an ogg file from a local folder within the project. This makes uses of the Rodio decoder struct, either appending it to a Rodio sink, or playing decoder output directly on an output stream. Either way, the audio is decoded and played straight away.

That setup works well for longer files, played once. For the game, I have a few sound effects that might be played dozens of times. It seemed a little extravagant to read from a file and decode each time I needed to play the same sound effect. Luckily, I found a Stack Overflow post with an alternative approach  , letting you buffer the decoder output. Since the audio files were no bigger that 10 KB, I was happy to buffer them as the app starts up and keep them in memory.

Rust Code #

I created a SoundEffects struct for holding all the sound effects, as there are only five of them. For an app with more, I would attempt a cleaner solution, but this approach keeps things simple for what I have.


1 use std::{fs::File, path::Path};
2
3 use rodio::{
4     source::{Buffered, Source},
5     Decoder,
6 };
7
8 pub struct SoundEffects {
9     pub start: Buffered<Decoder<File>>,
10     pub end: Buffered<Decoder<File>>,
11     pub perfect: Buffered<Decoder<File>>,
12     pub valid: Buffered<Decoder<File>>,
13     pub firework: Buffered<Decoder<File>>,
14 }
15
16 fn buffer_sound_effect<P: AsRef<Path>>(path: P) -> Buffered<Decoder<File>> {
17     let sound_file = File::open(&path)
18         .unwrap_or_else(|_| panic!("Should be able to load `{}`", path.as_ref().display()));
19     let source = Decoder::new(sound_file).unwrap_or_else(|_| {
20         panic!(
21             "Should be able to decode audio file `{}`",
22             path.as_ref().display()
23         )
24     });
25
26     source.buffered()
27 }
28
29 impl Default for SoundEffects {
30     fn default() -> Self {
31         SoundEffects {
32             start: buffer_sound_effect("./assets/start.mp3"),
33             end: buffer_sound_effect("./assets/end.mp3"),
34             perfect: buffer_sound_effect("./assets/perfect.mp3"),
35             valid: buffer_sound_effect("./assets/valid.mp3"),
36             firework: buffer_sound_effect("./assets/firework.mp3"),
37         }
38     }
39 }



The default initializer for the SoundEffects struct just creates a buffered decoding for each of the effects, which can be called later from the app code.

In app code, I can then clone one of these buffers and add it to a sink to play it. For example in the main game loop:


1 fn run_app<B: Backend>(terminal: &mut Terminal<B>, app: &mut App) -> io::Result<()> {
2     // ...TRUNCATED
3
4     let (_stream, stream_handle) = OutputStream::try_default().unwrap();
5     let sink = Sink::try_new(&stream_handle).unwrap();
6     let sound_effects = SoundEffects::default();
7
8     loop {
9         if event::poll(timeout)? {
10             if let Event::Key(key) = event::read()? {
11               // ...TRUNCATED
12
13                 match app.current_screen {
14                   // ...TRUNCATED
15                     CurrentScreen::PickingNumbers => match key.code {
16                         KeyCode::Enter => {
17                             if app.is_number_selection_complete() {
18                                 app.current_screen = CurrentScreen::Playing;
19                                 sink.append(sound_effects.start.clone());
20                             }
21                         }
22                     }
23                 }
24             }
25         }
26         // TRUNCATED...
27     }
28 }



We initialize the sink ahead of the main loop, then play the buffered sound from within it (line 19), by calling sink.append(). sink.append() pushes the buffer into a queue and plays it immediately (if nothing is already playing), or waits until the last sound has finished before starting. That setup works here, and if you need to play sounds simultaneously, you can create multiple sinks. This setup also avoids borrow checker issues with consuming the File struct, which might arise when decoding the File within the main loop.

🙌🏽 Ratatui Audio with Rodio: Wrapping Up #

In this Ratatui audio with Rodio post, I briefly ran through how I added audio to the Ratatui Countdown game. In particular, I talked about:

• why I added Rodio;
• why you might buffer Rodio to avoid borrow checker issues in a game loop; and
• how I buffered MP3 sound FX with Rodio.

I hope you found this useful. As promised, you can get the full project code on the Rodney Lab GitHub repo  . I would love to hear from you, if you are also new to Rust game development. Do you have alternative resources you found useful? How will you use this code in your own projects?
