🎬 Godot Rust GitHub Actions #

In this Godot Rust CI post, we take a quick look at some GitHub action you might want to add to your project for linting GDScript and Rust code on each commit.

The config, below, is based on the Knights to See You game. I ran through that project and some resources for getting going with Godot Rust bindings in a recent post. You might want to start there if you are new to Rust in Godot.

GitHub actions let you run continuous integration processes on each commit, usually by adding a YAML config file in a .github/workflows directory for your project. They can take a little trial-and-error to get right, but are worth the effort for keeping code consistent, running unit tests, finding outdated packages and even spotting potential security vulnerabilities.

There is a link further down to the full project code.

🤖 GDScript Linting and Formatting #

The project uses a mix of Rust and GDScript, and for linting the GDScript code in GitHub actions, I use godot-gdscript-toolkit .

.github/workflows/general.yml

yaml

    1 name: Rust
2 on:
3   push:
4     branches:
5       - main
6   pull_request:
7     types: [opened, synchronize, reopened]
8     branches:
9       - main
10 permissions: read-all
11 # TRUNCATED...
12   static-checks:
13     name: 'GDScript Static checks'
14     runs-on: ubuntu-latest
15     steps:
16       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
17       - uses: Scony/godot-gdscript-toolkit@792ec443ed90a82fdff02465edefa128174b0107 # 4.3.1
18
19       - run: gdformat --check godot/
20       - run: gdlint godot/

Setting default read-only permissions in a line 10 is a good idea, to limit access actions have to your repo. You can override this for any actions which require repo write access.

I use commit hashes to identify the exact action I want to run, though you can just use tag, instead.

The project is structured with godot and rust folders at the root level, and I set gdformat and gdlint only to run on the godot directory. gdformat provides opinionated GDScript formatting, while gdlint includes checks for unnecessary else statements, unused arguments and that your naming is consistent with the GDScript style guide (snake case function names, Pascal Case classes etc) among other checks.

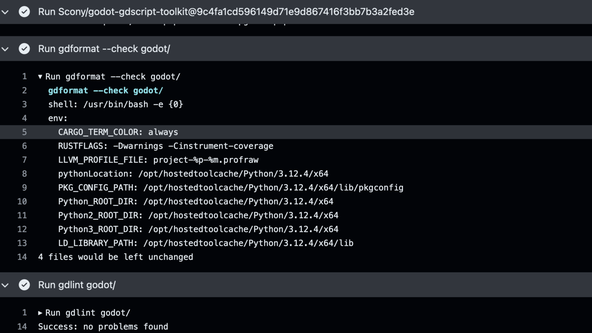

blurry low resolution placeholder image — Godot Rust CI: godot-gdscript-toolkit GitHub Action run log

Godot Rust C I: screen capture show log from Git Hub action running godot-g d script-toolkit. g d format output reads 4 files would be left unchanged and g d lint output reads Success: no problems found. — Godot Rust CI: godot-gdscript-toolkit GitHub Action run log

🦀 Rust Linting and Formatting #

Rust is well-known for having integrated formatting, linting, testing through cargo utilities, and you can set these up to run in GitHub actions by dtolnay :

.github/workflows/general.yml

yaml

    1 name: Rust
2 on:
3   push:
4     branches:
5       - main
6   pull_request:
7     types: [opened, synchronize, reopened]
8     branches:
9       - main
10 permissions: read-all
11 env:
12   CARGO_TERM_COLOR: always
13   RUSTFLAGS: "-Dwarnings -Cinstrument-coverage"
14   LLVM_PROFILE_FILE: "project-%p-%m.profraw"
15 jobs:
16   test:
17     name: Test
18     runs-on: ubuntu-latest
19     steps:
20       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
21       - uses: dtolnay/rust-toolchain@4f366e621dc8fa63f557ca04b8f4361824a35a45 # stable
22       - name: Run tests
23         run: cargo test
24   fmt:
25     name: Rustfmt
26     runs-on: ubuntu-latest
27     steps:
28       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
29       - uses: dtolnay/rust-toolchain@4f366e621dc8fa63f557ca04b8f4361824a35a45 # stable
30         with:
31           components: rustfmt
32       - name: Enforce formatting
33         run: cargo fmt --check
34   clippy:
35     name: Clippy
36     runs-on: ubuntu-latest
37     steps:
38       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
39       - uses: dtolnay/rust-toolchain@4f366e621dc8fa63f557ca04b8f4361824a35a45 # stable
40         with:
41           components: clippy
42       - name: Linting
43         run: cargo clippy -- -D warnings

You are probably already familiar with these tools, but let me know if the GitHub action side of things needs more explanation.

🧐 Other Handy Rust Actions #

Jon Gjengset has a fantastic video, in which he takes you through setting up CI on a Rust GitHub repo . You can clone his setup into any new Rust projects. Essentially, that is the process I followed for Knights to See You. Besides the Rust actions above, I have:

msrv check - a check that the project successfully builds using the Minimum Supported Rust version I give in Cargo.toml . This is worth checking in CI, since locally you will, likely, be running a newer Rust version.
cargo deny check - this checks the licences of any crates you use in your project and dependencies of those crates. You create your own allow list of licences, and the tool highlights any projects without matching licences. This helps avoid surprises further down the line.
audit-check - finds crates with security vulnerabilities.

Rust MSRV Check Action #

.github/workflows/general.yml

yaml

    1 name: Rust
2 on:
3   push:
4     branches:
5       - main
6   pull_request:
7     types: [opened, synchronize, reopened]
8     branches:
9       - main
10 permissions: read-all
11 # TRUNCATED...
12   msrv:
13     runs-on: ubuntu-latest
14     strategy:
15       matrix:
16         msrv: ["1.78.0"]
17     name: ubuntu / ${{ matrix.msrv }}
18     steps:
19       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
20       - name: Install Linux Dependencies
21         run: sudo apt-get update
22       - name: Install ${{ matrix.msrv }}
23         uses: dtolnay/rust-toolchain@4f366e621dc8fa63f557ca04b8f4361824a35a45 # stable
24         with:
25           toolchain: ${{ matrix.msrv }}
26       - name: cargo +${{ matrix.msrv }} check
27         run: cargo check

Cargo Deny Licence Check Action #

.github/workflows/validate-licences.yml

yaml

    1 name: Cargo Deny
2 on: [push, pull_request]
3 permissions:
4   contents: read
5 jobs:
6   cargo-deny:
7     runs-on: ubuntu-22.04
8     strategy:
9       matrix:
10         checks:
11           - advisories
12           - bans licenses sources
13     # Prevent sudden announcement of a new advisory from failing ci:
14     continue-on-error: ${{ matrix.checks == 'advisories' }}
15     steps:
16       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
17       - uses: EmbarkStudios/cargo-deny-action@8371184bd11e21dcf8ac82ebf8c9c9f74ebf7268 # v2.0.1
18         with:
19           command: check ${{ matrix.checks }}

See cargo-deny-action repo for configuration details .

Rust Security Audit Action #

.github/workflows/audit-on-push.yml

yaml

    1 name: Security audit
2 permissions:
3   contents: read
4 on:
5   push:
6     paths:
7       - 'Cargo.toml'
8       - 'Cargo.lock'
9 jobs:
10   security_audit:
11     runs-on: ubuntu-latest
12     steps:
13       - uses: actions/checkout@692973e3d937129bcbf40652eb9f2f61becf3332 # v4.1.7
14       - uses: rustsec/audit-check@dd51754d4e59da7395a4cd9b593f0ff2d61a9b95 # v1.4.1
15         with:
16           token: ${{ secrets.GITHUB_TOKEN }}

See audit-check repo for configuration details .

There are more checks you might want to include, depending on your project, and I have only highlighted a few here. See Jon Gjengset’s rust-ci-config repo for more.

🗳 Poll #

Which version control provider do you use for Godot games?

🙌🏽 Godot Rust CI: Wrapping Up #

In this Godot Rust CI, we took a quick look through some GitHub actions you might want to add to your Godot Rust game. In particular, we looked at:

actions for linting and formatting GDScript;
running familiar cargo tooling in GitHub actions; and
also how to run security audit and licence checks on your Rust crates in CI.

I hope you found this useful. As promised, you can get the full project code on the Rodney Lab GitHub repo . I would love to hear from you, if you are also new to Godot video game development. Were there other resources you found useful? Also, let me know what kind of game you are working on!
